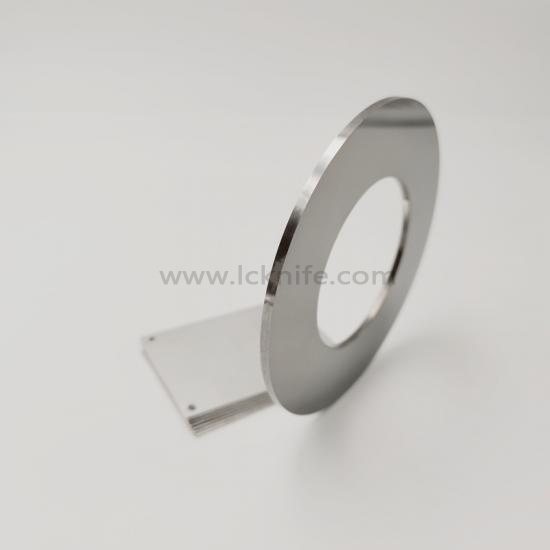

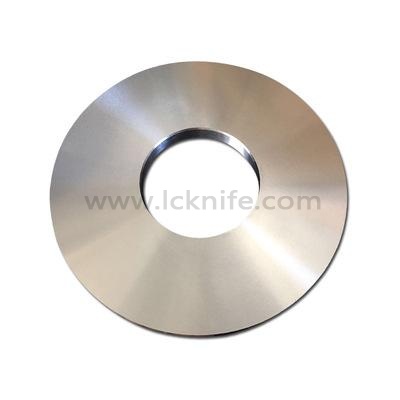

round slitting line blade rotary shear blades for coil slitting line

Basic size: 105x32x3mm (OD-ID-T)

Material: SKD11

Hardness: 61-62 HRC

Cutting edge: no burr, smooth side trimming

To get a quote or more details sooner about this rotary shear blade  ,

please email us at phoebe@lcblade.com

OR whatsapp +86 13399550005


Metal slitter knife of Licheng is used to slit hot and cold mild steel, stainless steel, Al, Co, galvanized sheet, silicon steel,  and so on coiling strips. We have manufacturing capability of production slitting knife size up to 680mm at OD with material  Cr12MoV, D2, W6Mo5Cr4V2, W18Cr4V, H13, H13K, H13Ni, HMB, LD, and special customized materials (for high tensile steel sheet, oriented and non-oriented silicon steel slitting). Slitter knifes from Licheng is always highly required with

1. Wear resistance & high pricesion

2. Advanced heat treatment

3. Superior choice of raw material and hardness of knife according to clients' products

4. Strict inspection & best service




  • Order(MOQ):

    10
  • Shipping Port:

    shanghai
  • Lead Time:

    5-30 days after order
  • Product Detail

Product Description:


Metal slitter knife
 of Licheng is used to slit hot and cold mild steel, stainless steel, Al, Co, galvanized sheet, silicon steel,  and so on coiling strips. We have manufacturing capability of production slitting knife size up to 680mm at OD with material  Cr12MoV, D2, W6Mo5Cr4V2, W18Cr4V, H13, H13K, H13Ni, HMB, LD, and special customized materials (for high tensile steel sheet, oriented and non-oriented silicon steel slitting).  Slitter knifes from Licheng is always highly required with

1. Wear resistance & high pricesion

2. Advanced heat treatment

3. Superior choice of raw material and hardness of knife according to clients' products

4. Strict inspection & best service


Detailed Parameters:


Material of separator

Cr12MoV, D2, W6Mo5Cr4V2, W18Cr4V, H13, H13K, H13Ni, HMB, LD,

specially customized materials for high tensile steel, oriented, non-oriented silicon steel slitting

Thickness tolerance

±0.00008"

Hardness

53-65HRC accordingly

outside diameter tolerance

±0.001"

parallelism within

0.0001"

flatness within

0.0001"

concentricity within

0.001"

max surface roughness

Ra0.1-0.2



Our advantages:


1. Our Factory is focusing on producing all kinds of slitting and cutting blades.

Blades provided are durable, precise and productive with a longer service life.

2. Our factory will provide professional advice involved selection of material and processing technology to meet our customer's requirements about a good use of slitting or cutting tool.

3. We have a strict quality control system, and strict inspection report to ensure client a exceeded standard product at competitive price.

4. Experienced and excellent over 21 years, always satisfy client with high level of commitment to quality and service.

5. Large production capability, abundant stock of standard knifes, and any customized dimension is available!


Get A Quote

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related Products
rubber bonded spacers
High precision slitter steel metal spacer with rubber disc for slitting line knives
Metal spacer is used on slitter shaft to adjust different distance between slitting knife according to needed width of coiling strips. Same high pricision as slitting knife's; Reasonable price, not as expensive as knife of raw material; Wear resistance, but lighter for machine shaft to ensure higher precision of slitting strip and easier assembling. Details: Material of separator 9CrSi / 52100/ SKD11 Thickness tolerance ±0.00008" Hardness 45-56HRC outside diameter tolerance ±0.001" parallelism within 0.0001" flatness within 0.0001" concentricity within 0.001" max surface roughness Ra0.2
circular separator spacer
Professional circular separator spacer between recoiling sheet
Disc separator is used to separate slitted strips of coiling sheet of Aluminum, Copper, Stainless, Q235, and so on. To ensure no interference between neighbor rolls while rewinding process. Well used materials of separator disc: 65Mn, GCr15, 9SiCr, SKD11. Super hardness,bur free,high wear resistance and long work life are the merits of our knifes and spacer discs.
machine separator spacer
Durable separator discs spacer between rolling sheet for rewinding machine
Disc separator is used to separate slitted strips of coiling sheet of Aluminum, Copper, Stainless, Q235, and so on. To ensure no interference between neighbor rolls while rewinding process. Well used materials of separator disc: 65Mn, GCr15, 9SiCr, SKD11. Super hardness, bur free, high wear resistance and long work life are the merits of our knifes and spacer discs.
metal spacer
Steel slitter spacer separator disc for coil slitting line
Metal spacer is used on slitter shaft to adjust different distance between slitting knifes according to needed width of coiling strips, which should be the same as precision as knife. resonable prices, wear resistance, but lighter for ensuring high precision of slitting strip and easier assembling operations. Well used materials of metal spaces: 40Cr, S45,65Mn,9CrSi,GCr15,and stainless steel.
steel spacer
High quality disk metal steel spacer of slitting line
Metal spacer is used on slitter shaft to adjust different distance between slitting knife according to needed width of coiling strips. Same high pricision as slitting knife's; Reasonable price, not as expensive as knifes; Wear resistance, but lighter for machine shaft to ensure higher precision of slitting strip and easier assembling. Detailed parameters: 1. Basic size (ODxIDxTmm): 140x100xT 2. Material: 65Mn 3. Hardness: 48-58HRC 4. Tolerance of Thickness: +/-0.002mm 5. Burr-free 6. Roughness: Ra0.2/ Ra.04
slitter spacer
Slitter Knives Rewinder Knife Slitter Spacer for Slitting Line
Metal spacer is used on slitter shaft to adjust different distance between slitting knife according to needed width of coiling strips. Same high pricision as slitting knife's; Reasonable price, not as expensive as knife of raw material; Wear resistance, but lighter for machine shaft to ensure higher precision of slitting strip and easier assembling.
circular slitting knife
High precision steel strip coil circular slitter shear knife
Slitter shear knife is mainly used in coiling machine for metal sheet like mild steel, stainless steel, Aluminum, Copper, galvanized sjeet and cold or hot rolled plate trimming and slitting. We have manufacturing capability of production slitting knife size up to 650mm at OD with material Cr12MoV, D2, M2, W18Cr4V, H13, H13K, H13Ni, HMB, LD, DC53, YG20 and so on.  Thickness could be well controlled with +/-0.001mm, and flatness could reach 0.001mm as well. Advanced heat treatment and strict inspection make sure our knifes superior and stable quality.
steel sheet slitter
high precision coil slitter knife disk slitting knife rotary sheet slitter blade
Metal slitter knife of Licheng is used to slit hot and cold mild steel, stainless steel, Al, Co, galvanized sheet, silicon steel,  and so on coiling strips. We have manufacturing capability of production slitting knife size up to 680mm at OD with material  Cr12MoV, D2, W6Mo5Cr4V2, W18Cr4V, H13, H13K, H13Ni, HMB, LD, and special customized materials (for high tensile steel sheet, oriented and non-oriented silicon steel slitting). Slitter knifes from Licheng is always highly required with 1. Wear resistance & high pricesion 2. Advanced heat treatment 3. Superior choice of raw material and hardness of knife according to clients' products 4. Strict inspection & best service
